Product Profile

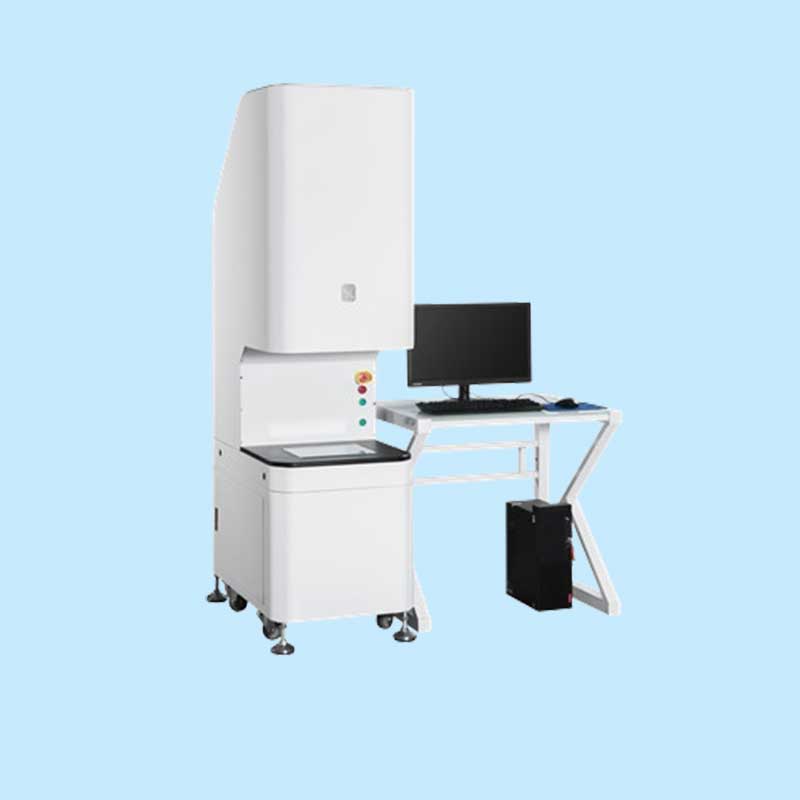

Introducing the ST Series Flash Instrument
The ST Series Flash Instrument features dual remote center high-resolution optical lenses and a high-precision image analysis algorithm, all integrated with a one-click flash measurement principle. In CNC mode, simply press the start button, and the instrument will automatically locate the measurement object, match the template, measure, evaluate, and generate a report based on the workpiece's shape. This ensures fast and accurate measurements with just one key press.
- Product Superiority
-
Traditional measuring instruments, such as projectors, image measuring instruments, tool microscopes, contour instruments, vernier calipers, and micrometers, face numerous challenges. These include object positioning, origin positioning time, lengthy batch measurement operations, inconsistent results from different operators, and complicated data management.
The ST Series Flash Instrument eliminates these issues with the following advantages:
- A. One-Key Flash Test for Faster Batch Measurements
-
- No need for clamp positioning; the instrument automatically identifies products and matches templates for one-key measurements.
- Measures up to 500 parts and over 100 objects simultaneously.
- Supports CAD drawing import for automatic matching and measurement with one key.
- Performs quick and accurate batch measurements in CNC mode.
- B. Accurate, Stable, and Reliable Calculations
-
- High-resolution lenses and a 20-million-pixel industrial camera ensure 1% subpixel image processing and high-precision algorithm analysis.
- Autofocus feature eliminates manual measurement interference and ensures consistent repeated focus.
- Automatically identifies measurement parts for unified and stable results each time.
- C. Simple Operation for Easy and Carefree Use
-
- User-friendly operation that requires no complicated training.
- Intuitive interface allows anyone to easily set up and measure.
- Instantly evaluates measurement size deviation on-site and generates statistical analysis and test results reports with one key.
- D. Rich Functions with Automatic Report Generation
-
- Offers up to 80 extraction and analysis tools along with various special measurement tools.
- Automatically generates SPC analysis reports.
- Features powerful remote data output functionality.
Application Areas
The ST Series Flash Instrument is versatile and can be used in a wide range of industries, including:
- Machinery
- Electronics
- Molds
- Printed Circuit Boards
- Hardware
- Rubber
- Low Voltage Electrical Appliances
- Medical Devices
- Magnetic Materials
- Precision Stamping
- Connectors
- Clocks
- Terminals
- Mobile Phones
- Home Appliances
- Knives
This comprehensive measurement solution ensures precision and efficiency across various fields.
